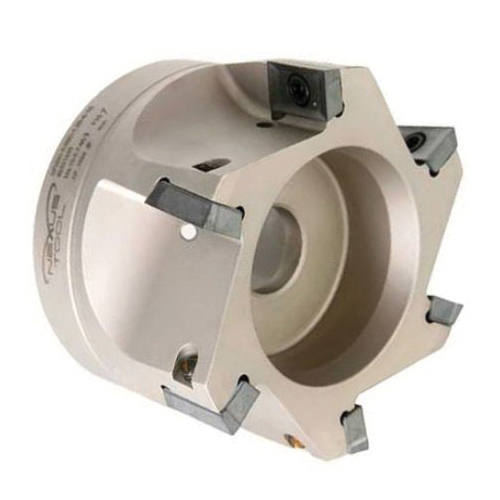

SFM90-2.00C-.750-4-16 FACE MILL
SFM90-2.00C-.750-4-16 FACE MILL
TEC2321234
2321234
341.00
/ EA
http://schema.org/OutOfStock
/Product/TEC2321234
- ANSI Code: SFM90-2.00C-.750-4-16
- Arbor Hole Diameter: 3/4in
- Country of Origin: TW
- Cutter Diameter Decimal Inch: 2
- Cutter Diameter Fractional Inch: 2
- Cutter Diameter Metric: 50.8
- Cutting Angle: 90°
- Head Length: 1.57in
- Insert Gage Screw: 9319345
- Insert Style: AP_ _1604, APKT/APGT/APEX
- Manufacturer Name: TECHNIKS INDUSTRIES
- Material: H13 Tool Steel
- Number of Inserts: 4
- Overall Length Decimal Inch: 1.57
- Overall Length Metric: 39.878
- Series: ShrinkMILL
- Through Coolant (Yes/No): Yes
- Has Attributes: Yes
- Has Image: Yes
- Surface Treatment: Electroless Nickel Plated
- Application
- Item Features
Facing, Plunging, Ramping and Pocket Milling
- The holding power and rigidity of ShrinkFIT applied to a face mill
- Longer tool life or increased feed rates
- Better surface finish due to increased rigidity
- ShrinkMILL bore tolerance creates a nearly perfect connection between arbor and face mill
- Coolant through ready with coolant arbor screw
