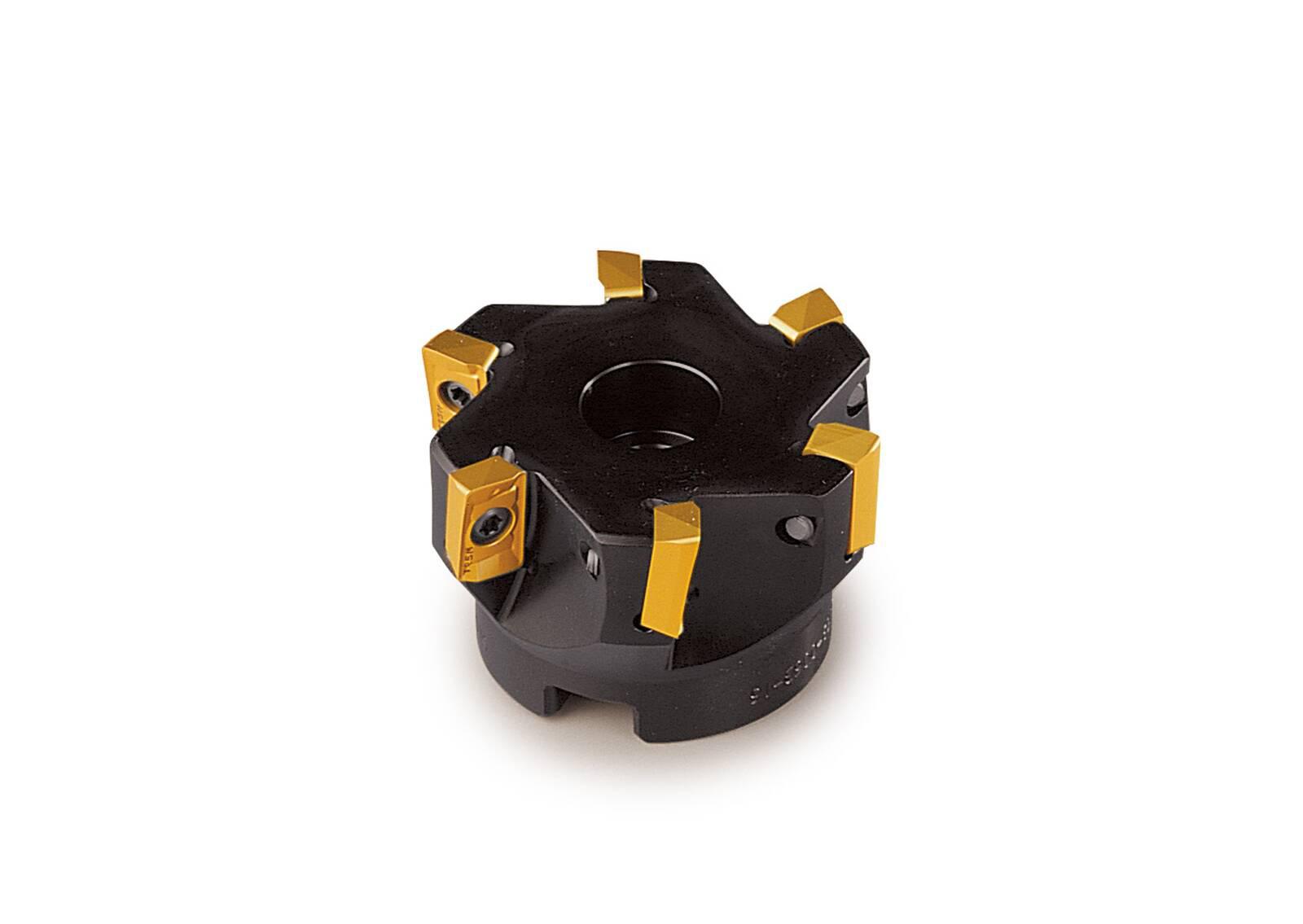

R220.69-0050-16

R220.69-0050-16

SEC75011925 75011925
898.56 / EA
http://schema.org/OutOfStock
R220.69-0050-16
  • Arbor Hole Diameter: 0.866 in, 0.866in
  • Country of Origin: SE
  • Cutter Diameter Decimal Inch: 1.969
  • Cutter Diameter Fractional Inch: 1-31/32
  • Cutter Diameter Metric: 50.013
  • Hand Direction: Right Hand
  • Insert Style: AP1604
  • Lead Angle: 90 deg, 90°
  • Manufacturer Name: Seco Tools
  • Maximum Depth of Cut: 0.591 in, 0.591in
  • Number of Inserts: 5
  • Overall Length Decimal Inch: 1.575
  • Overall Length Metric: 40.005
  • Series: R220.69
  • Through Coolant (Yes/No): No
  • Type: Indexable
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Item Features
  • Feature a coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials
  • Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body
