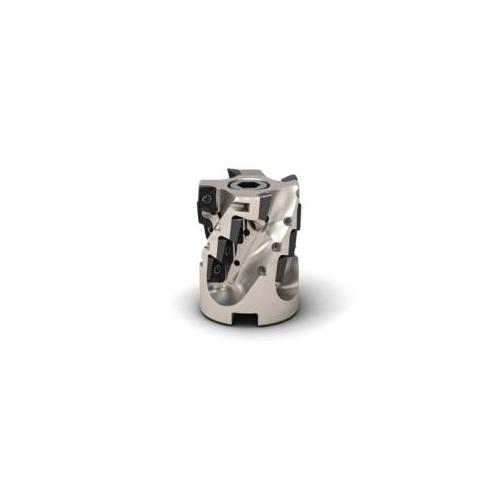

R220.69-00063-062-18.4AN

R220.69-00063-062-18.4AN

SEC02710034 02710034
1890.00 / EA
http://schema.org/OutOfStock
R220.69-00063-062-18.4AN
  • Arbor Hole Diameter: 1.063 in, 1.063in
  • Country of Origin: FR
  • Cutter Diameter Decimal Inch: 2.48
  • Cutter Diameter Metric: 62.992
  • Hand Direction: Right Hand
  • Insert Style: XO1806
  • Lead Angle: 90 deg, 90°
  • Manufacturer Name: Seco Tools
  • Maximum Depth of Cut: 2.441 in, 2.441in
  • Number of Inserts: 4
  • Overall Length Decimal Inch: 3.347
  • Overall Length Metric: 85.014
  • Series: R220.69
  • Through Coolant (Yes/No): No
  • Type: Indexable
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Item Features
  • Incorporates the latest geometries and grades to achieve high feed rates, large depths of cut, and aggressive metal removal in contouring and profiling operations
