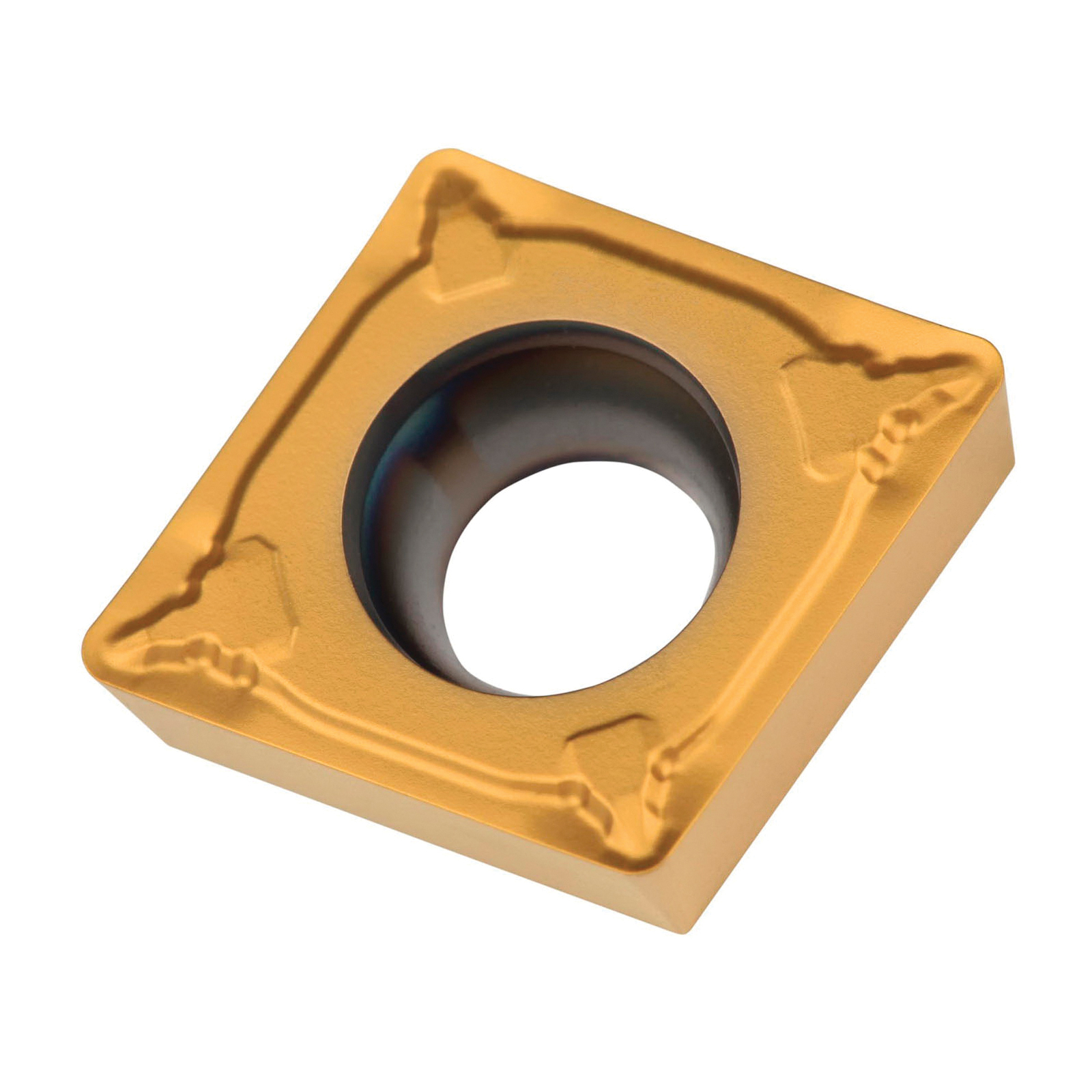

CCMT 09T302E-UR:T8330 TURNING INSERT
CCMT 09T302E-UR:T8330 TURNING INSERT
PRA7763057
7763057
7.38
/ EA
http://schema.org/OutOfStock
/Product/PRA7763057
- Insert Style: CCMT
- Insert Size: 32.5
- Corner Radius: 0.008in
- Manufacturer Grade: T8330
- Chipbreaker: UR
- ISO Code: CCMT 09T302E-UR:T8330
- ANSI Code: CCMT 32.50.5-UR:T8330
- Included Angle: 80°
- Shape: Rhombic
- Surface Treatment: PVD Coated
- Inscribed Circle: 3/8in
- Maximum Depth of Cut Decimal Inch: 0.118
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 0.173in
- Length: 0.382in
- Manufacturer Name: Dormer Pramet
- Rake: Positive
- Relief Angle: 7°
- Thickness: 0.156in
