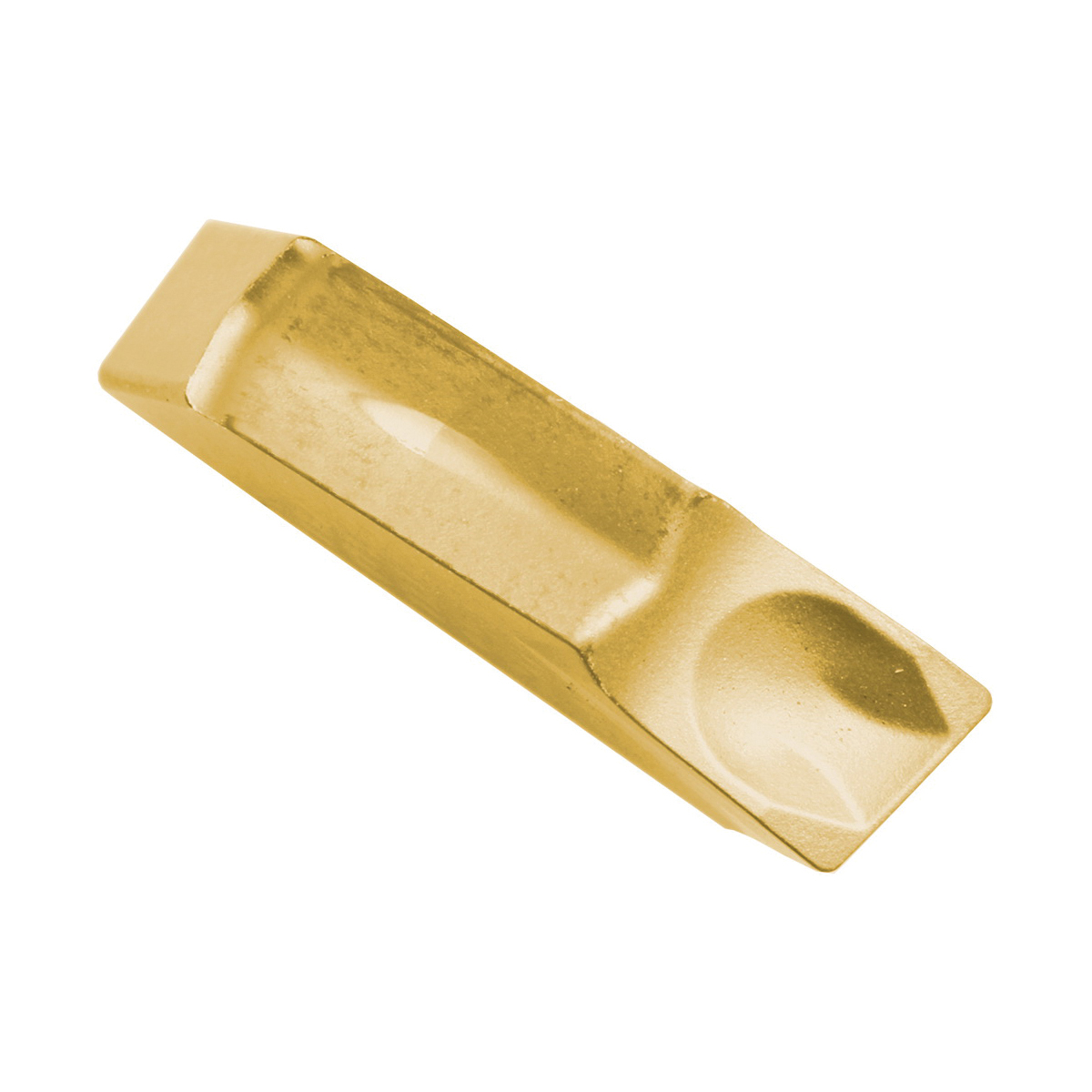

TKL3CR9025 CUT-OFF INSERT

TKL3CR9025 CUT-OFF INSERT

KYOCTKW15152 TKW15152
15.71 / EA
http://schema.org/OutOfStock
TKL3CR9025 CUT-OFF INSERT
  • ANSI Code: TKL3CR9025
  • Corner Radius: 0.25mm
  • Country of Origin: US|JP|CN|KR
  • Cutting Width: 3.1mm
  • Hand of Insert: Left
  • Insert Size: #3
  • Insert Style: TK
  • ISO Code: TKL3
  • Lead Angle: 8°
  • Lead Angle Direction: Left Hand
  • Manufacturer Grade: CR9025
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Material Grade: P
  • Series: KTKB
  • Surface Treatment: CVD-TiCN/TiN Coated
  • Type: 1-Cutting Edge Metric Positive Rake
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
For cut-off, grooving and multi-function cutting of steel
  • 8 deg lead angle
  • Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
  • Without hole and full radius
ECCN: EAR99
