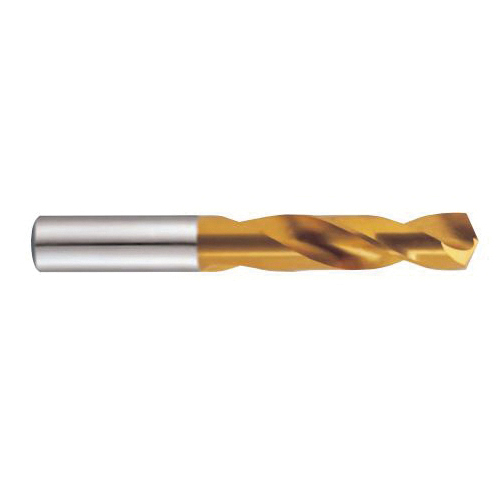

D4147 LTR Q M42 TIN CTD SCREW MACHINE DRILL
D4147 LTR Q M42 TIN CTD SCREW MACHINE DRILL
YGTCD4147217
D4147217
9.31
/ EA
http://schema.org/OutOfStock
/Product/YGTCD4147217
- Cutting Depth: 1-11/16in
- Cutting Depth Decimal Inch: 1.6875
- Cutting Depth Fractional Inch: 1-11/16
- Cutting Depth Metric: 42.862
- Drill Size Letter: Q
- Drill Size Metric: 8.4328, 8.433
- Flute Length Decimal Inch: 1.6875
- Flute Length Fractional Inch: 1-11/16
- Flute Length Metric: 42.862
- Flute Type: Right Spiral
- Hand Direction: Right Hand
- Included Angle: 135°
- Material: M42 HSS-Co 8
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Point Type: Split
- Series: D4147
- Shank Size: 21/64in
- Shank Type: Straight
- Surface Treatment: TiN Coated
- System of Measurement: Imperial
- Applicable Materials: Alloyed/Non-Alloyed, Cast Steel, Gray Cast Iron, Graphite, Malleable Cast Iron and Steel
- Drill Size Decimal Inch: 0.332
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Application
- Item Features
- Standards
For drilling applications
- Right hand spiral, wider flute geometry
ANSI Specified
