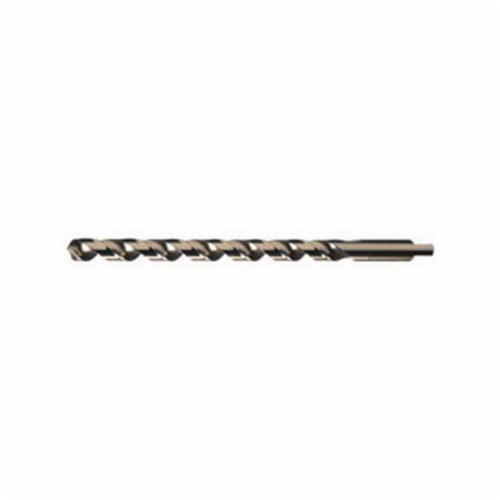

1/8 2513 COBALT DR./T.L.
1/8 2513 COBALT DR./T.L.
CTDC14873
C14873
11.25
/ EA
http://schema.org/OutOfStock
/Product/CTDC14873
- Cutting Depth: 3-3/8 in
- Cutting Depth Decimal Inch: 3.375
- Cutting Depth Fractional Inch: 3-3/8
- Cutting Depth Metric: 85.725
- Drill Size Fractional Inch: 1/8
- Drill Size Metric: 3.175
- Flute Length Decimal Inch: 3.375
- Flute Length Fractional Inch: 3-3/8
- Flute Length Metric: 85.725
- Flute Type: Spiral
- Hand Direction: Right Hand
- Material: Cobalt
- Overall Length Decimal Inch: 5.125
- Overall Length Fractional Inch: 5-1/8
- Overall Length Metric: 130.175
- Point Type: Notched
- Series: 2513
- Shank Size: 1/8 in
- Shank Type: Straight
- Surface Treatment: Straw Oxide
- Type: General Purpose Heavy Duty
- Point Angle: 118 deg
- Applicable Materials: Stainless Steel, Carbon Steel and Cast Iron
- Drill Size Decimal Inch: 0.125
- Has Attributes: Yes
- Has Image: Yes
- Item Features
- High red hardness for extended wear life in high heat conditions
- Cobalt is harder than high speed steel and provides better wear-resistance
- Straw oxide finish provides a polished finish and prevents chip building, galling and welding on a workpiece
- Spiral flutes are constructed of a higher flute angle to remove chips easier
- 30 deg helix
