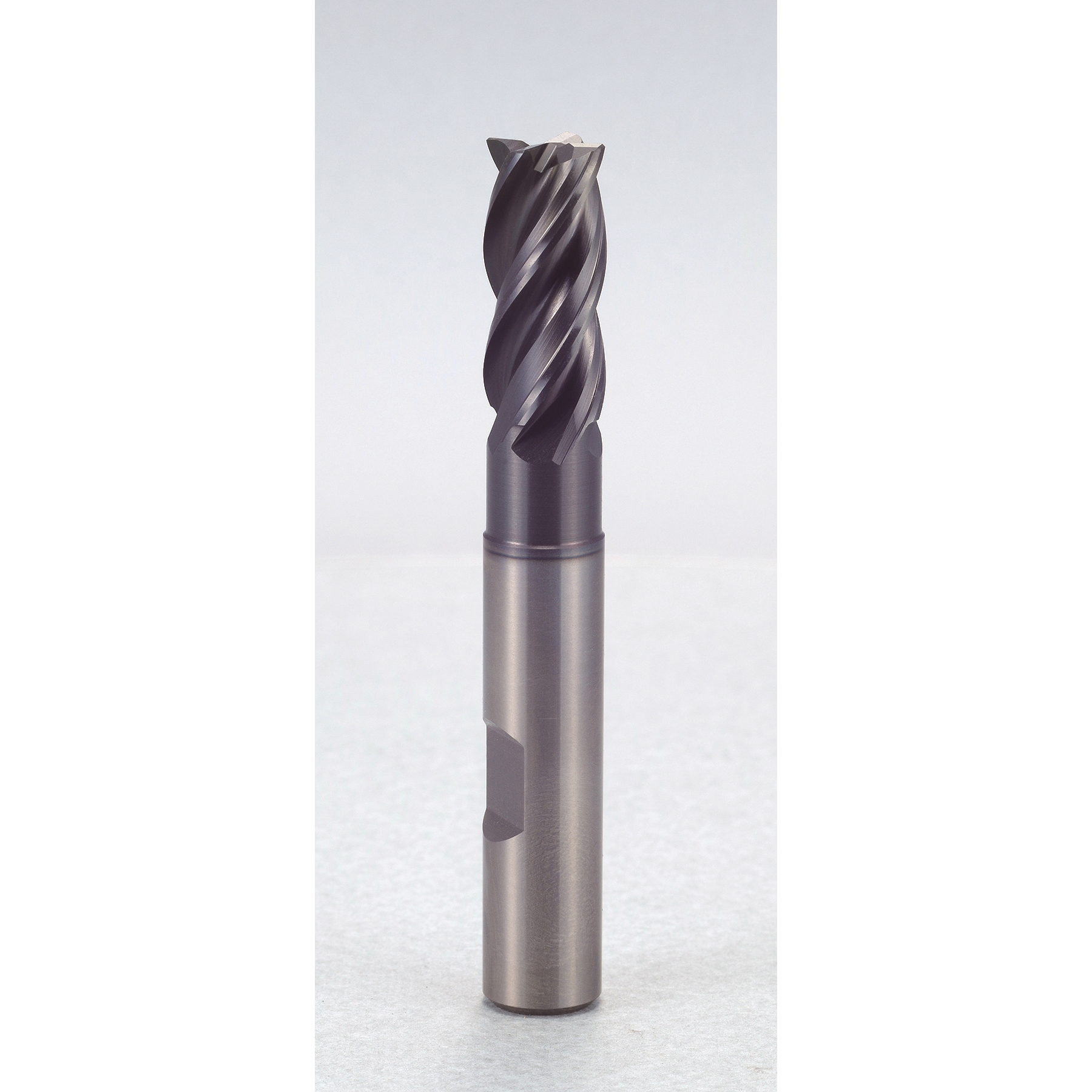

5/8 .030CR V7 PLUS A 4FL END MILL
5/8 .030CR V7 PLUS A 4FL END MILL
YGTCUGMF75907
UGMF75907
253.20
/ EA
http://schema.org/OutOfStock
/Product/YGTCUGMF75907
- Corner Radius: 0.03in
- Cutter Diameter Decimal Inch: 0.625
- Cutter Diameter Fractional Inch: 5/8
- Cutter Diameter Metric: 15.875
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Helix Angle: 36°
- Length of Cut Decimal Inch: 0.75
- Length of Cut Fractional Inch: 3/4
- Length of Cut Metric: 19.05
- Manufacturer Name: YG-1 Tool
- Material: Micrograin Carbide
- Number of Flutes: 4
- Overall Length Decimal Inch: 6
- Overall Length Fractional Inch: 6
- Overall Length Metric: 152.4
- Series: UGMF75 V7 PlusA
- Shank Diameter Decimal Inch: 0.625
- Shank Diameter Fractional Inch: 5/8
- Shank Type: WELDON FLAT
- Surface Treatment: Y-Coated
- Type: Center Cut Extended Length Imperial
- Item Features
- Special flute geometry and multiple helix eliminate vibrations
- Excellent performance for stainless steels, mild steels, cast iron, low/medium hardness materials and all exotic materials up to HRc40
- Advanced coating for superior performance and tool life
