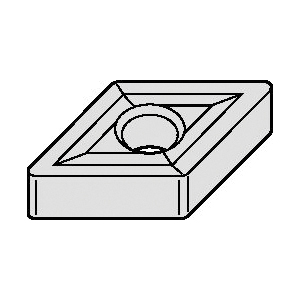

NEGATIVE-LOCK PIN INSERT
NEGATIVE-LOCK PIN INSERT
WIDA4164785
4164785
16.23
/ EA
http://schema.org/OutOfStock
/Product/WIDA4164785
- ANSI Code: DNGP431 TN10U
- Applicable Materials: Stainless Steel and High Temperature Alloys
- Corner Radius: 1/64in
- Country of Origin: US
- Hand Direction: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 0.2031in
- Included Angle: 55°
- Inscribed Circle: 1/2in
- Insert Size: 431
- Insert Style: DNGP
- ISO Code: DNGP150404 TN10U
- Manufacturer Grade: TN10U
- Manufacturer Name: WIDIA
- Material: Carbide
- Rake: Negative
- Relief Angle: 0°
- Shape: Diamond/Rhombic
- Surface Treatment: PVD-AlTiN Coated
- Thickness: 3/16in
- Type: General Performance
