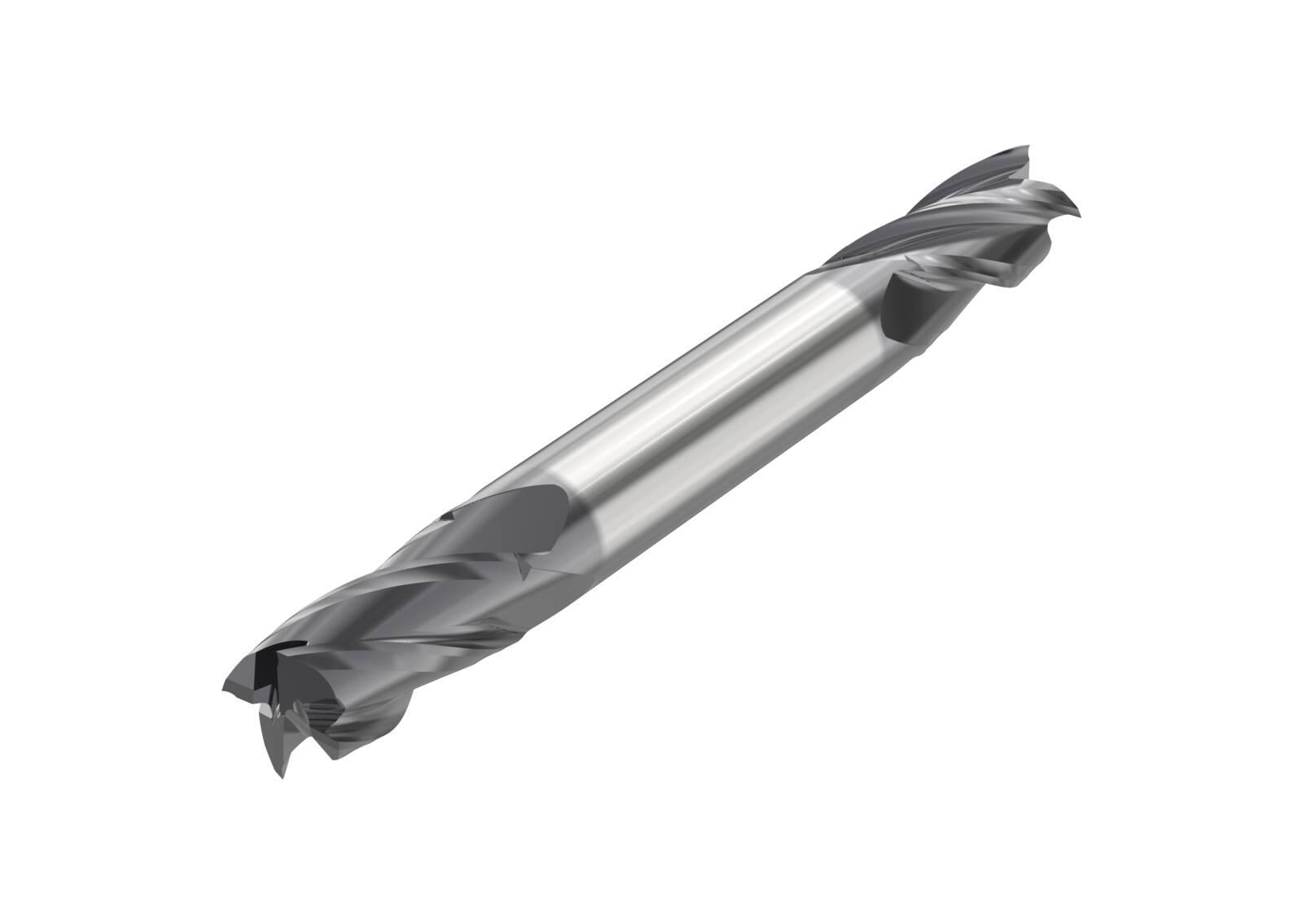

3/8x3/8x9/16x2-1/2 CARB DE SQ END MILL

3/8x3/8x9/16x2-1/2 CARB DE SQ END MILL

SEC10268445 10268445
35.78 / EA
http://schema.org/OutOfStock
3/8x3/8x9/16x2-1/2 CARB DE SQ END MILL
  • ANSI Code: C5141-.375D2S.0Z4D, SIRA
  • Country of Origin: US
  • Cutter Diameter Decimal Inch: 0.375
  • Cutter Diameter Fractional Inch: 3/8
  • Cutter Diameter Metric: 9.525
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Helix Angle: 30 deg
  • Length of Cut Decimal Inch: 0.5625
  • Length of Cut Fractional Inch: 9/16
  • Length of Cut Metric: 14.287
  • Manufacturer Name: Seco Tools
  • Material: Carbide
  • Number of Flutes: 4
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Shank Diameter Decimal Inch: 0.375
  • Shank Diameter Fractional Inch: 3/8
  • Shank Type: Cylindrical
  • Surface Treatment: SIRON-A Coated
QTY
Add to List
  • Standards
ANSI B94.19
