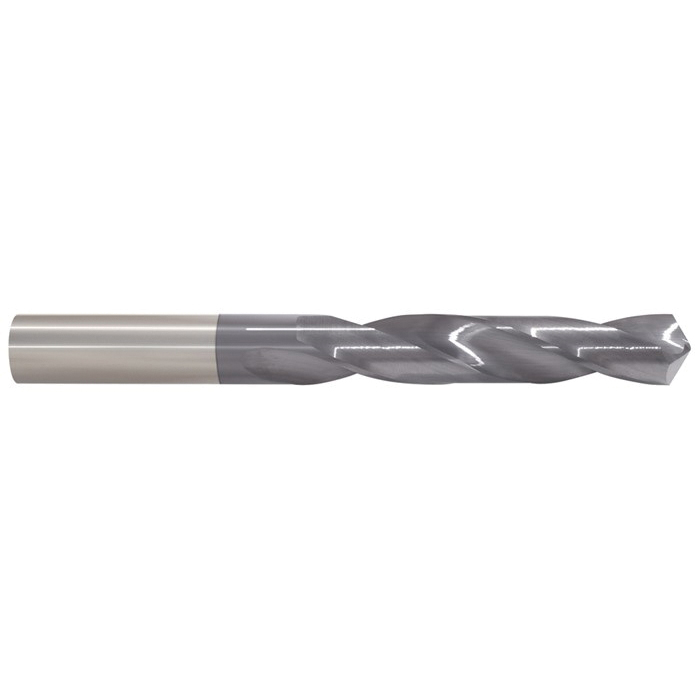

#11 TiAlN CARB TWIST DRILL
#11 TiAlN CARB TWIST DRILL
MOTC450-301910B
450-301910B
25.61
/ EA
http://schema.org/OutOfStock
/Product/MOTC450-301910B
- Applicable Materials: Cast Iron, Hardened Materials, Non-Ferrous Metal, Steel and Stainless Steel
- Color: Black/Gray
- Country of Origin: US
- Cutting Depth: 1-5/8 in
- Cutting Direction: Right Hand
- Cutting Edge Material: C2 Submicron Solid Tungsten Carbide
- Drill Diameter Measurement System: Imperial
- Drill Size - Decimal Inch: 0.191 in
- Drill Size - Wire: #11
- Flute Length: 1-5/8 in
- Flute Type: Spiral/Twist
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Monster Tool
- Material: C2 Submicron Solid Tungsten Carbide
- Number of Flutes: 2
- Overall Length: 2-3/4 in
- Point Angle: 118 deg
- Shank Size: 0.191 in
- Shank Type: Straight
- Through Coolant (Yes/No): No
- Type: Single End
- Item Features
- Precision drilling in non-ferrous alloys, cast iron, plastics, aluminum and highly abrasive materials
- The most versatile overall length lends this geometry to a multitude of uses
- 25 deg helix angle quickly evacuates chips and twist allows for increased feed rates
- 118 deg split point for quick penetration without walking
- AlTiN coating can increase feed rates by 40%
