TGR AO T11 CUP AC16Q 6/4-3/4X2 5/8-11
TGR AO T11 CUP AC16Q 6/4-3/4X2 5/8-11
WEB68360
68360
25.49
/ EA
http://schema.org/OutOfStock
/Product/WEB68360
- Abrasive Material: Aluminum Oxide
- Applicable Materials: Cast Iron, Ductile Iron, Stainless Steel and Steel
- Bond Type: Synthetic Resin
- Center Hole Thread Size: 5/8-11 UNC
- Country of Origin: BR
- Face Width: 1-1/2 in
- Manufacturer Name: Weiler Abrasives
- Maximum Speed: 6000 rpm
- Specifications Met: ANSI B7.1
- Wheel Color: Brown
- Wheel Hardness: Q
- Wheel Shape: Cup
- Wheel Thickness: 2 in
- Wheel Type Number: Type 11
- Wheel Diameter: 6 x 4-3/4 in
- Grade: AC16Q
- Grit: 16

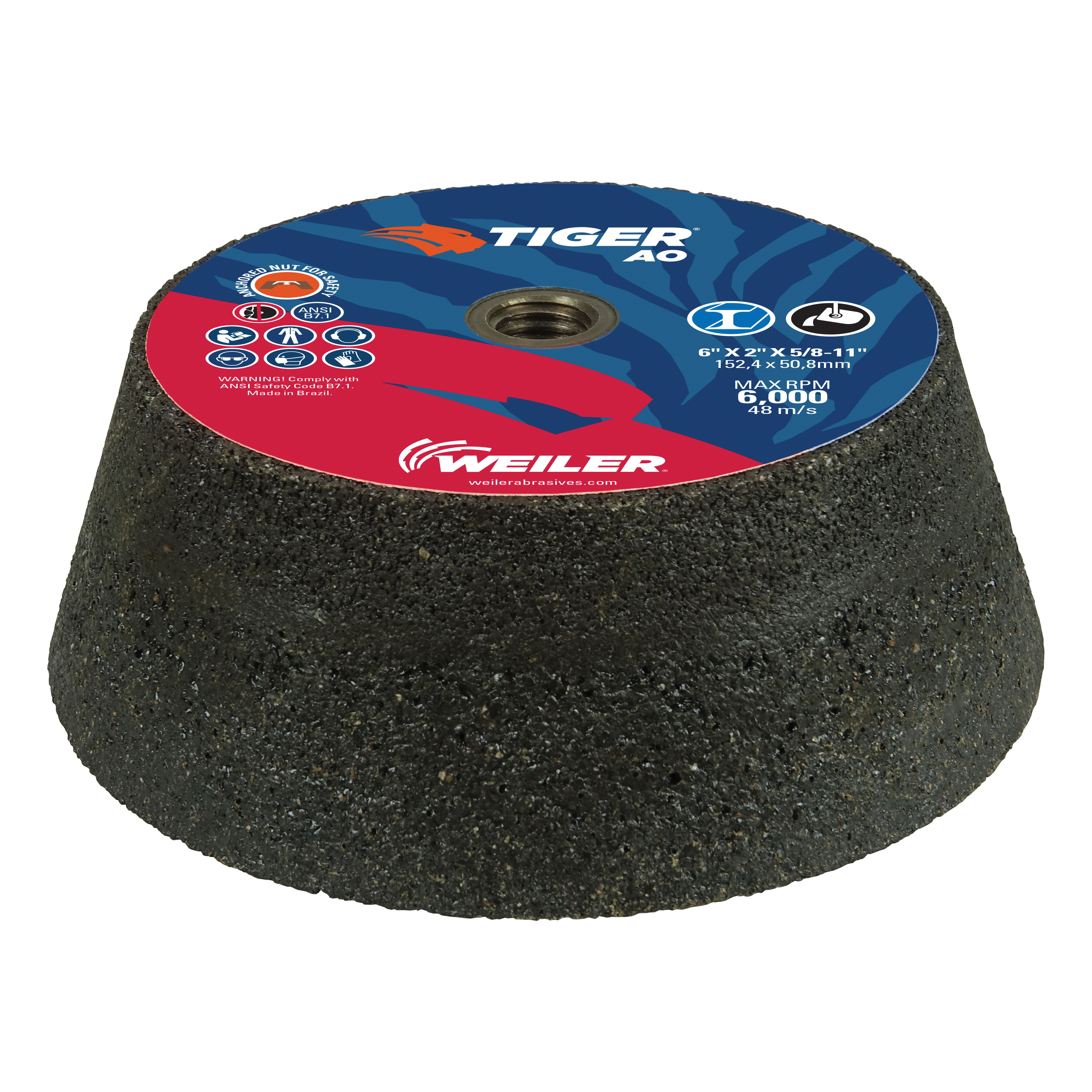

Weiler Tiger® AO 6 in type 11 flaring cup wheels deliver the right combination of performance and value. Our advanced bond technology provides long product life while an aluminum oxide and silicon carbide abrasive grain mix performs well with burn-in/burn-on sand and the other foundry cleaning room applications. The high friability and sharpness of the silicon carbide grain makes it an ideal additive in this AO cup for hard-to-grind materials. The type 11 flared shape features a flat grinding surface, making them ideal for heavy metal removal, grinding, transitioning, rough beveling, and removing cracks and flaws. A wide 1-1/2 in rim provides a large grinding zone to minimize grind time. The 5/8-11 arbor is designed for use on right angle die grinders, high-frequency grinders, and right angle grinders. Whether you are in a fab shop or a foundry, you can count on Tiger® AO cup rocks to get the job done fast and done right.
- Application
- Item Features
- Standards
For heavy metal removal, grinding, transitioning, rough beveling and removing cracks and flaws
- Strong resin bond delivers long cutting life
- Precision balanced to ensure smooth, vibration-free operation and reduced operator fatigue
- Unique anchored safety nut locks the cup in place to increase safety and prevent product breakage
- Zinc plated nut prevents oxidation, eliminating contamination and allowing for easy mounting
- A wide 1.5 in rim provides a large grinding zone to minimize grind time
- Best for use on castings with sand contamination and hard-to-grind metals
PROP65: This product can expose you to chemicals including Silica, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
