CCMW 21.50.5:T5315 TURNING INSERT
CCMW 21.50.5:T5315 TURNING INSERT
PRA6922805
6922805
6.23
/ EA
http://schema.org/OutOfStock
/Product/PRA6922805

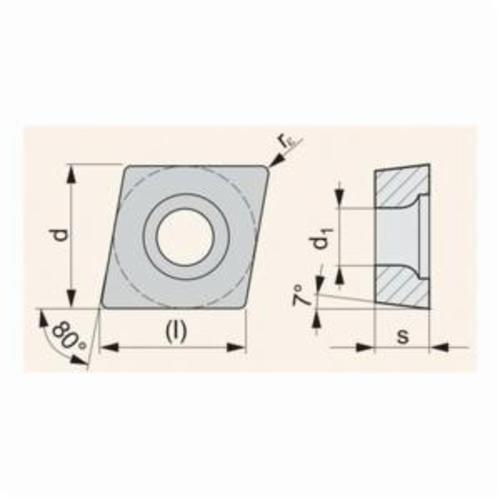

- Insert Style: CCMW
- Insert Size: 21.50.5
- Corner Radius: 0.2mm
- Manufacturer Grade: T5315
- ISO Code: CCMW 060202:T5315
- ANSI Code: CCMW 21.50.5:T5315
- Included Angle: 80°
- Shape: Diamond
- Material Grade: H, M, P
- Seat Size: 6
- Surface Treatment: CVD Coated
- Inscribed Circle: 6.35mm
- Maximum Depth of Cut: 4.2mm
- Applicable Materials: Hardened Steel, Stainless Steel and Steel
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 2.8mm
- Material: Carbide
- Rake: Positive
- Relief Angle: 7°
- Thickness: 2.38mm
- Type: 6.4mm
- Application
- Item Features
Finishing and Roughing
- T5315 grade fine grained substrate with a modified cobalt content to increase strength
- Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
- Special finish for coating
- Versatile material designed primarily for turning gray and ductile cast iron
- Medium to high cutting speeds
- Suitable for continuous and interrupted cut
