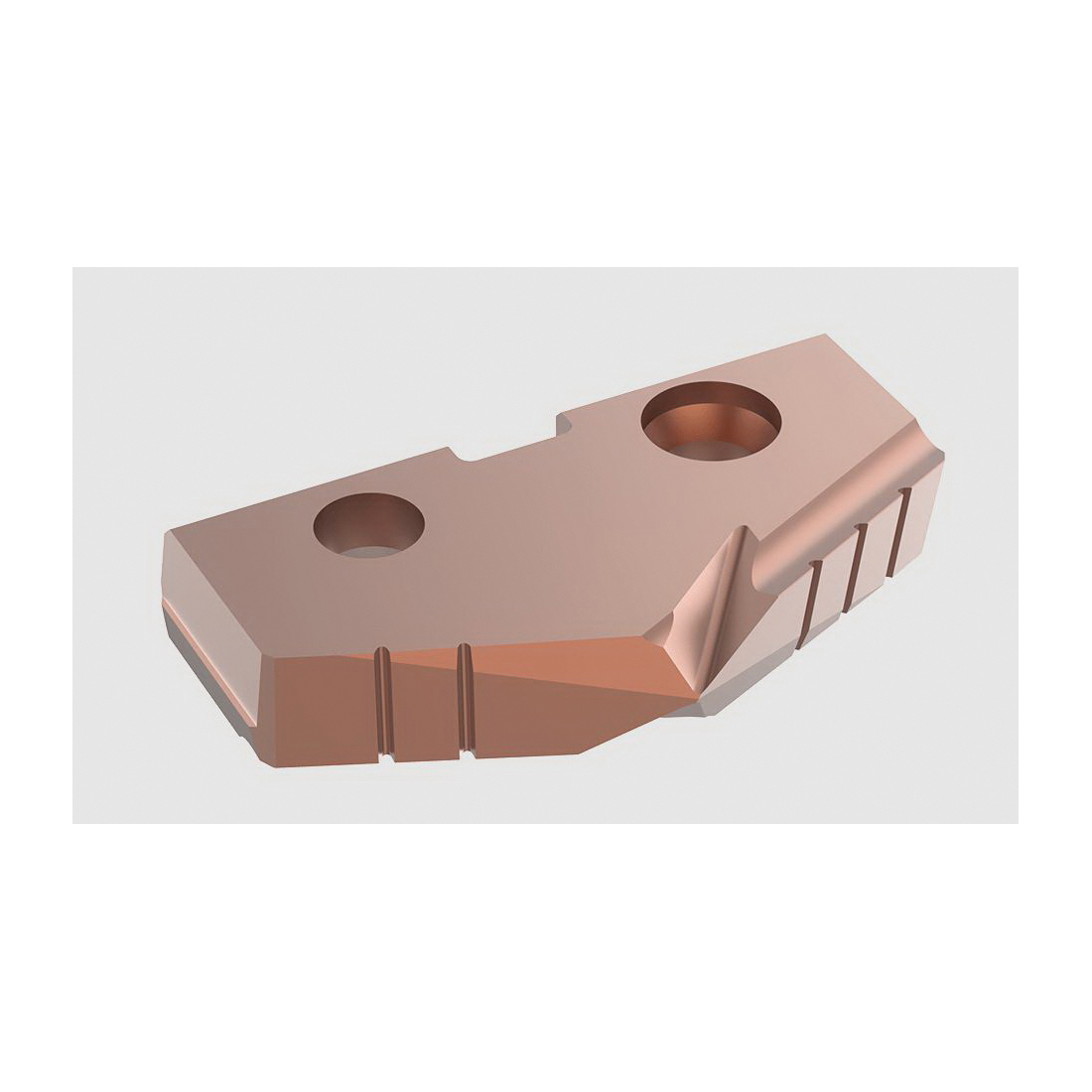

1-1/2" GEN2 TA SPADE DRILL INSERT
1-1/2" GEN2 TA SPADE DRILL INSERT
AME453H-0116-HE
453H-0116-HE
70.50
/ EA
http://schema.org/OutOfStock
/Product/AME453H-0116-HE
- Cutter Diameter Inch: 1.5000in
- Geometry: High Efficiency
- Included Angle: 132°
- Material: Super Cobalt
- Seat Size: #3
- Series: 3
- Surface Treatment: AM200®
- Thickness: 1/4in
- Type: Replaceable
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: Super Cobalt
- Manufacturer Name: Allied Machine & Engineering
The GEN2 T-A drill inserts provide lower drilling forces, increased stability, smoother breakout on through-hole and allows for improved chip formation. These inserts feature Allied's exclusive AM300® and AM200® coatings for increased tool life.", 'T-A® Structural Steel Drilling System is designed for use on structural steel materials. This system delivers outstanding performance and durability.
- Application
- Item Features
High Temp Alloy, Hardened Steel, Steel, Cast Iron, Stainless Steel
- Holders are compatible with GEN2 T-A® inserts for increased performance
- Reduce thrust
- 150 deg Structural Steel Geometry for reduced exit burr
- TiAlN and AM200® insert coatings increase tool life in MQL applications
- Multiple geometries available
- Improve stability
- Improve tool life
- Higher penetration rates
- NotchPoint™ Geometry for improved hole straightness
- Thin Wall Geometry for materials under 7/16" (11 mm) thick
- Morse Taper shanks with through shank coolant capability
- Various tool lengths to accommodate different reaches
- Notch Point® geometry
- Helical margin
- Allied's proprietary AM300® and AM200® coatings
