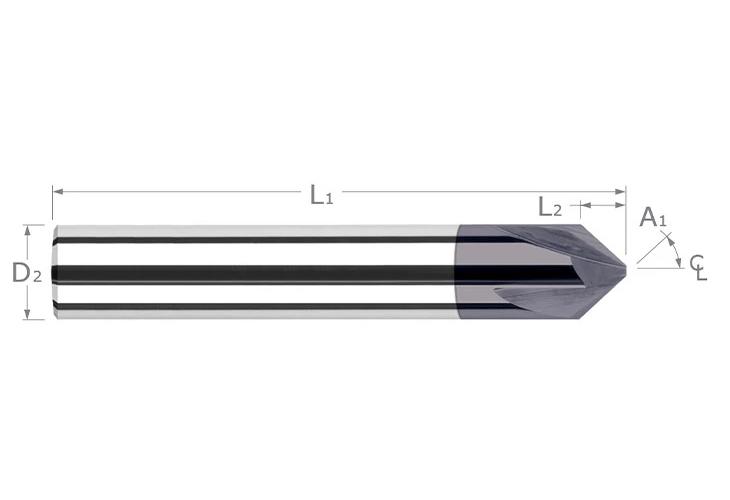

3/16 2FL 27.5DEG AlTiN CHAMFER CUTTER

3/16 2FL 27.5DEG AlTiN CHAMFER CUTTER

HATL72428-C3 72428-C3
40.50 / EA
http://schema.org/OutOfStock
3/16 2FL 27.5DEG AlTiN CHAMFER CUTTER
  • Cutter Head Diameter: 0.188 in
  • Included Angle: 55 deg
  • Material: Solid Carbide
  • Number of Flutes: 2
  • Overall Length Decimal Inch: 2
  • Overall Length Fractional Inch: 2
  • Overall Length Metric: 50.8
  • Shank Diameter Decimal Inch: 0.188
  • Shank Diameter Fractional Inch: 3/16
  • Shank Type: Cylindrical
  • Type: Type I Imperial
  • Country of Origin: US
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Length of Cut Decimal Inch: 0.18
  • Length of Cut Metric: 4.572
  • Manufacturer Name: Harvey Tool
  • Surface Treatment: AlTiN
QTY
Add to List
  • Application
  • Item Features
Great for chamfering and deburring in small and narrow areas and flat, which is non-end cutting and optimized for profiling and chamfering larger features, great for blending the floor and a chamfered wall in one pass
  • Corner radius for improved strength
  • Center cutting
