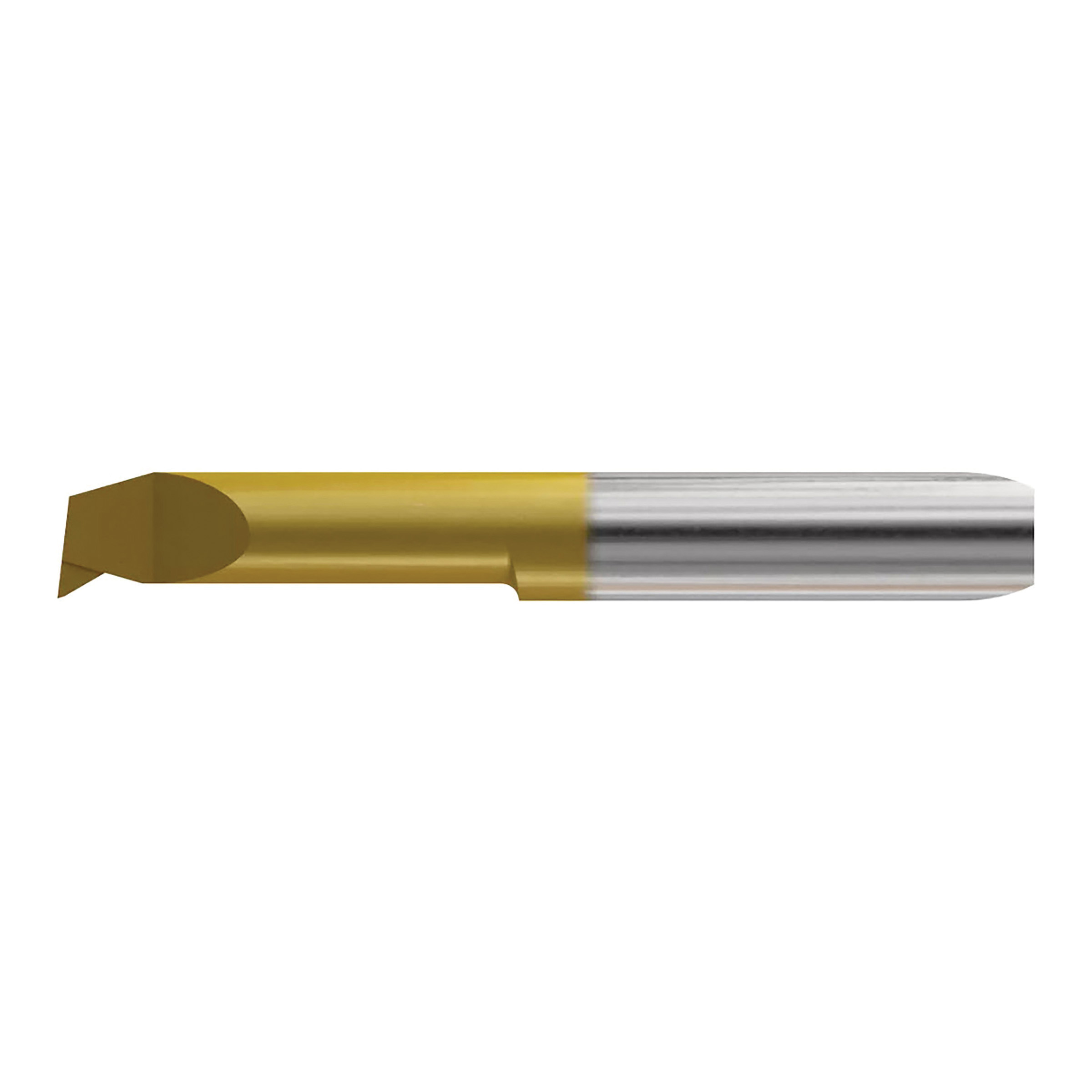

1(R0.05)x4x(4)x28 INDEXABLE INSERT
1(R0.05)x4x(4)x28 INDEXABLE INSERT
YGTCNCBP04R1004005T
NCBP04R1004005T
33.56
/ EA
http://schema.org/OutOfStock
/Product/YGTCNCBP04R1004005T
- Material: Carbide
- Maximum Bore Depth: 4mm
- Minimum Bore Diameter: 1mm
- Overall Length: 28mm
- Shank Diameter: 4mm
- Type: 1-Cutting Edge YG812 Grade
- Hand Direction: Right Hand
- Surface Treatment: PVD-TiN Coated
- Series: NCBP
- Has Attributes: Yes
- Has Image: Yes
- Insert Shape: 55° Rhombic
The new YG-1 NanoCut is a turning tool for small bore applications. A wide range of insert series cover various application like boring, grooving, profiling and chamfering with optimized grade for improved productivity.
- Application
- Item Features
Boring, Internal Turning, Grooving and Threading Applications
- 1 mm minimum diameter
- Internal coolant for longer tool life and enhanced chip evacuation
- Secure connection design, pin + slant positioning
- Nine geometries for various application
- High repeatability
- Longer tool life
- Reduced machine down time
- Lower machining cost
