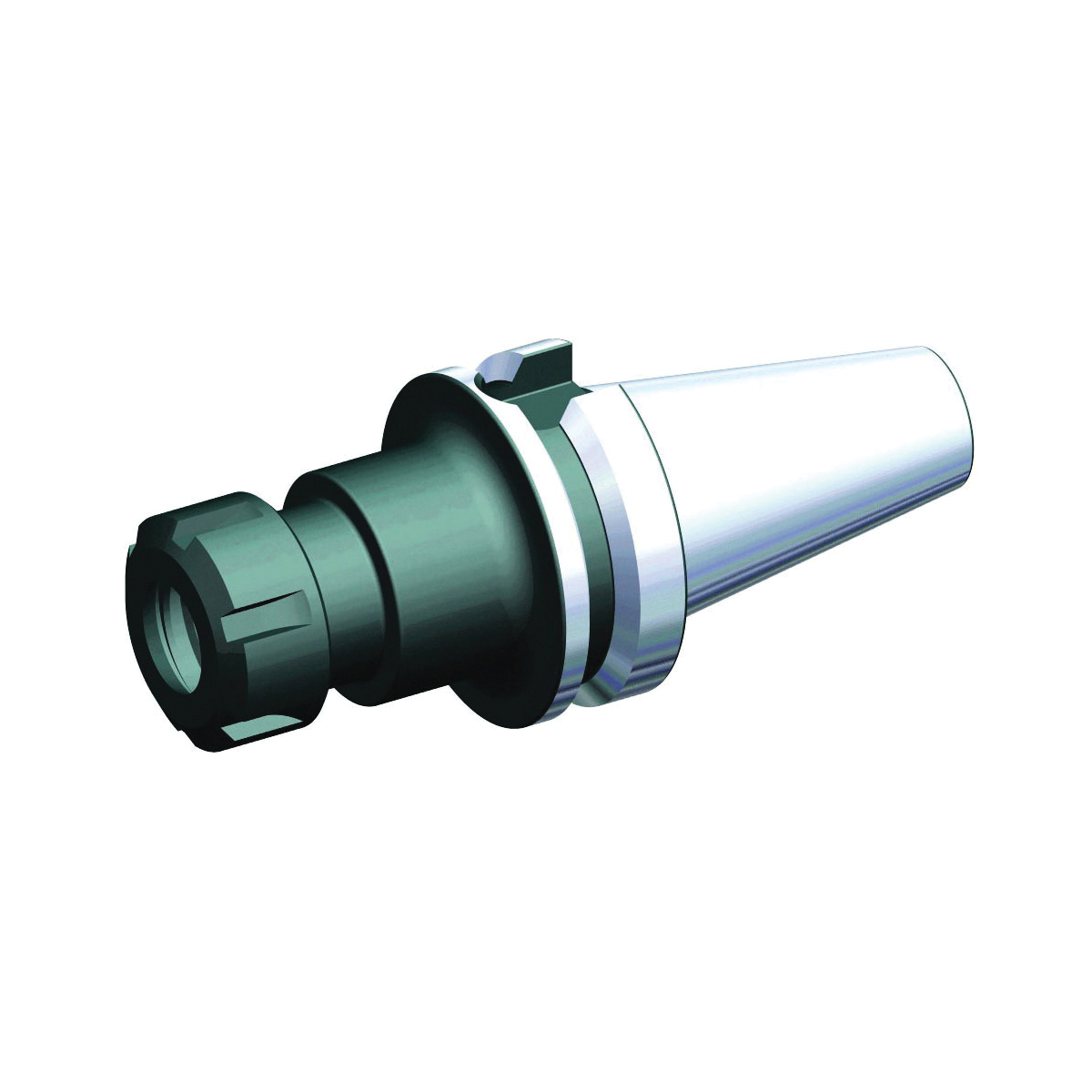

BT40 FORMB ER32 COLLET CHUCKX150
BT40 FORMB ER32 COLLET CHUCKX150
WIDA3798343
3798343
219.34
/ EA
http://schema.org/OutOfStock
/Product/WIDA3798343
- Modular Connection Size: BT40
- Collet System: ER32
- Through Coolant (Yes/No): Yes
- Type: Form B/AD Round Single Angle
- ANSI Code: BT40BER32150M
- Collet Nut Diameter: 50mm
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 150mm
- ISO Code: BT40BER32150M
- Nose Diameter: 50mm
- Overall Length: 215.4mm
- Shank Diameter: 44.45mm
- Shank Type: Taper
- Taper Size: BT40
- Threaded Shank Size: M16x2
- Includes
- Item Features
- Standards
LNSER32M Locknut and SS094041G Stop Screw
- 2:1 advantage grip
JIS B 6339|DIN 6499
