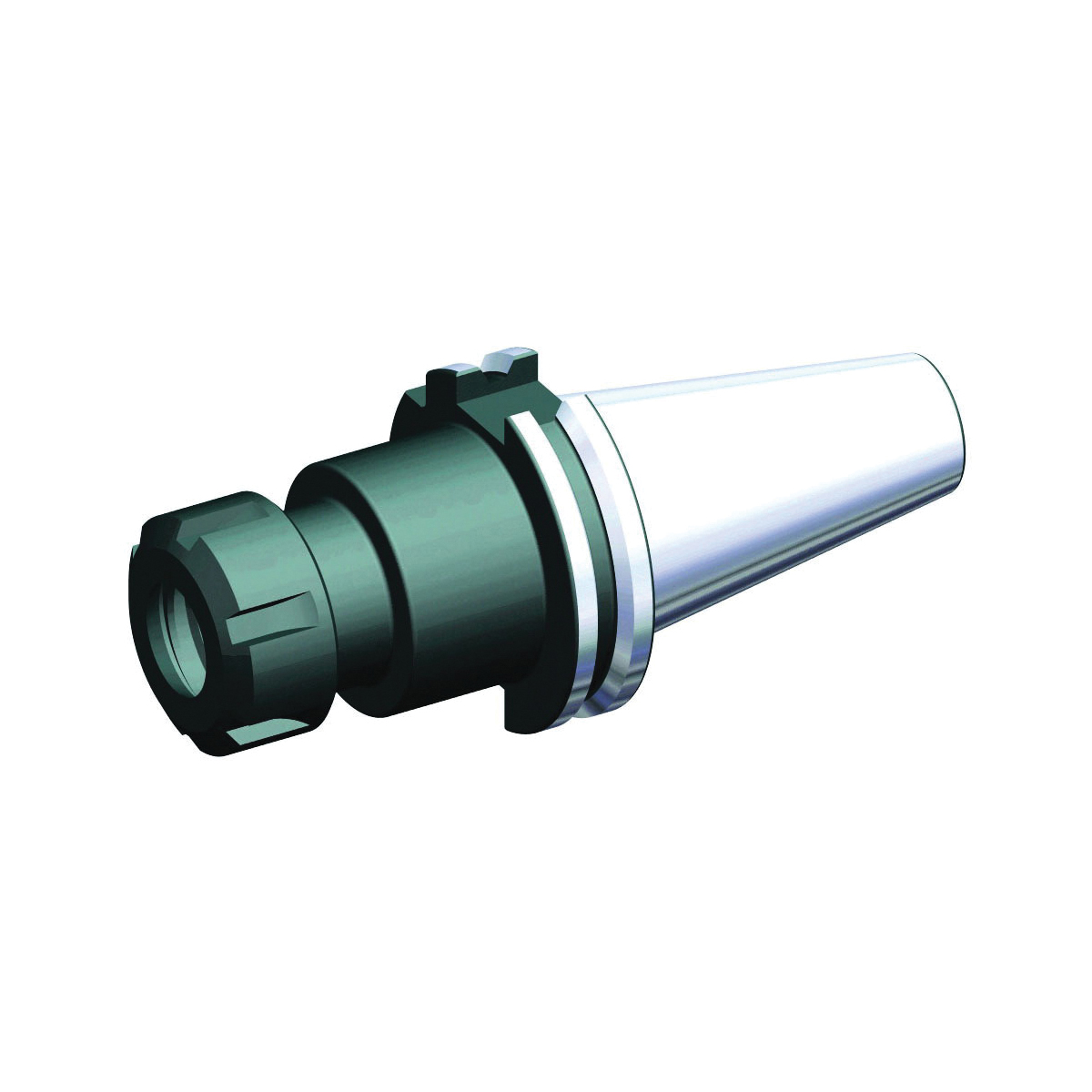

COLLET CHUCK DV50 32ER 2-32 BAD
COLLET CHUCK DV50 32ER 2-32 BAD
WIDA1264128
1264128
456.32
/ EA
http://schema.org/OutOfStock
/Product/WIDA1264128
- Modular Connection Size: DV50
- Collet System: ER32
- Through Coolant (Yes/No): Yes
- Type: Form B/AD Round Single Angle
- ANSI Code: DV50BER32070M
- Collet Nut Diameter: 50mm
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 70mm
- ISO Code: DV50BER32070M
- Nose Diameter: 50mm
- Overall Length: 171.6mm
- Shank Diameter: 69.85mm
- Shank Type: Taper
- Taper Size: DV50
- Threaded Shank Size: M24x3
- Includes
- Item Features
- Standards
LNSER32M Locknut and SS094041G Stop Screw
- 2:1 advantage grip
DIN 69871|DIN 6499
