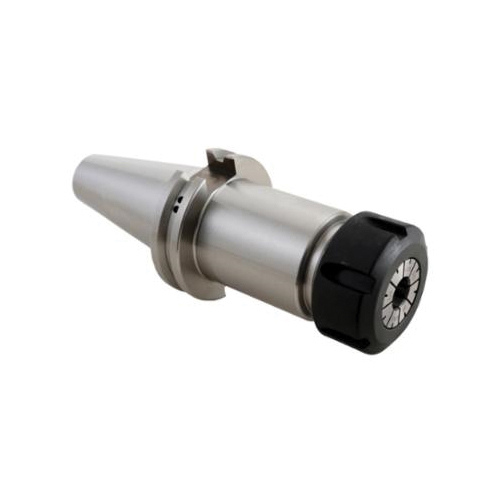

ER32 CT40 2.76GL COOL FLEX HOLDER
ER32 CT40 2.76GL COOL FLEX HOLDER
TEC22253F
22253F
168.23
/ EA
http://schema.org/OutOfStock
/Product/TEC22253F
- Collet System: ER32
- Through Coolant (Yes/No): Yes
- Type: Precision Single End V-Flange
- Chuck Size: ER32
- Collet Nut Diameter: 1.97in
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 2.76in
- Nose Diameter: 1.969in
- Overall Length: 5.44in
- Shank Type: Tapered
- Taper Size: CAT40
- Includes
- Item Features
Hex Nut
- Precision CoolFLEX collet chuck holders offer coolant capability either through the spindle or through the flange (DIN B)
- The holder is balanced to 25000 rpm at G2.5 and achieves T.I.R of 0.0001 in or better from taper to collet pocket
- Each holder is Techniks certified for balance and accuracy and comes with its individual lab report
- Taper is ground to AT3 accuracy or better
