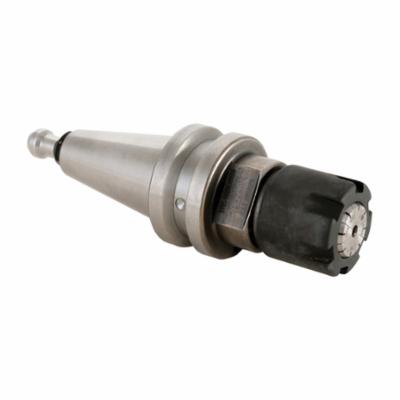

ER16 ISO20 COLLET CHUCK W/52MM PROJECTION
ER16 ISO20 COLLET CHUCK W/52MM PROJECTION
TEC16000-2016MC
16000-2016MC
181.39
/ EA
http://schema.org/OutOfStock
/Product/TEC16000-2016MC
- Collet System: ER16
- Type: Single End V-Flange
- Chuck Size: ER16
- Collet Nut Diameter: 1.26in
- Country of Origin: TW
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 2.05in
- Manufacturer Name: TECHNIKS INDUSTRIES
- Nose Diameter: 1.102in
- Overall Length: 3.36in
- Shank Type: Tapered
- Taper Size: ISO20
- Application
- Includes
- Item Features
For CNC routers
PowerCOAT Mini Nut and Retention Knob
- ISO collet chucks are balanced to 40000 rpm at G2.5 tolerance
- They are individually lab tested for accuracy and balance and come with their individual performance report
- Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
- Taper is ground to AT3 accuracy or better
