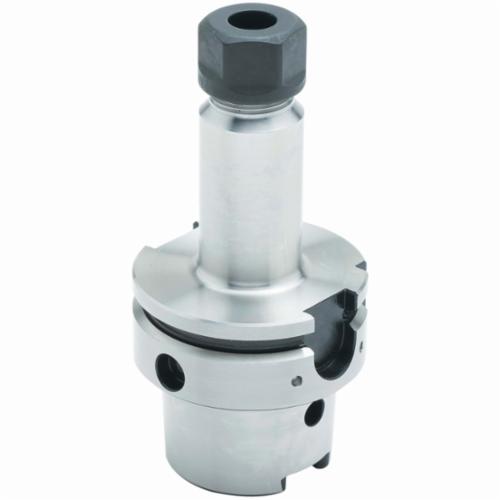

ER16 HSK63A FLUSH BALANCED COLLET CHUCK
ER16 HSK63A FLUSH BALANCED COLLET CHUCK
PARLH63-16ERF394
H63-16ERF394
323.64
/ EA
http://schema.org/OutOfStock
/Product/PARLH63-16ERF394
- Collet System: ER16
- Through Coolant (Yes/No): Yes
- Chuck Size: ER16
- Collet Nut Diameter: 1.1in
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 3.94in
- Nose Diameter: 1.1in
- Shank Type: Tapered
- Taper Size: HSK63A
ER collet chucks are an ideal solution for most drilling and lighter higher speed milling applications producing operational speeds as high as 20000 rpm. The versatile design of the ER collet chuck provides a wide range of machining options, from production to high precision machining. Simply select the right collet and nut combination from our range of performance choices to achieve the best toolholder for your application.
- Application
- Includes
- Item Features
For CNC machines
16ERHN Flush Collet Nut
- Collet seat taper T.I.R. =0.0002 in
- Accepts DIN 6499 collets
- Balanced to G2.5
- Hardened to Rc 52-56 to avoid damaging collet chuck treads
