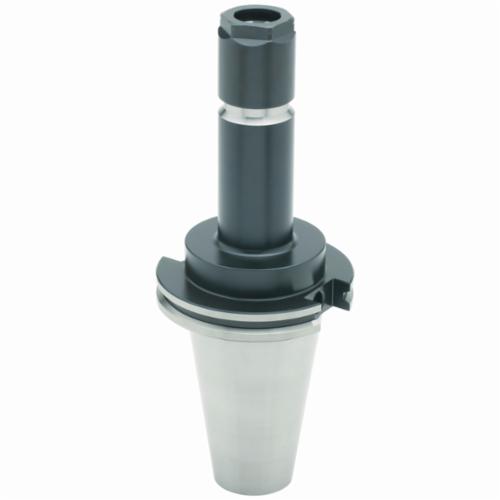

DA180 CHK X 6.15"
DA180 CHK X 6.15"
PARLC50-18DC6
C50-18DC6
257.52
/ EA
http://schema.org/OutOfStock
/Product/PARLC50-18DC6
- Collet System: DA180
- Through Coolant (Yes/No): Yes
- Type: Double Angle
- ANSI Code: C50-18DC6
- Chuck Size: DA180
- Collet Nut Diameter: 1.44in
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 6.15in
- Nose Diameter: 1.44in
- Overall Length: 10.15in
- Shank Type: Tapered
- Taper Size: CAT50
- Includes
- Item Features
ECN75 Collet Nut and BS-18 Backup Screw
- Constructed of alloy steel for long, durable service life
- Hardened to Rc 52-56 to avoid damaging collet chuck threads
- Shiny taper with black oxide finish for the best combination of accuracy and durability
- Collet seat taper T.I.R.
- Through-spindle coolant capability
- Flange-entry coolant is the same as DIN form B
