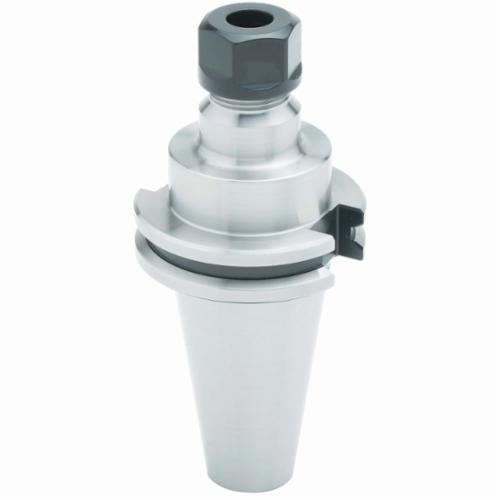

CT40 ER16 COLLET CHUCK

CT40 ER16 COLLET CHUCK

PARLC40-16ERF250 C40-16ERF250
183.57 / EA
http://schema.org/OutOfStock
  • Collet System: ER16
  • Through Coolant (Yes/No): Yes
  • ANSI Code: C40-16ER250
  • Chuck Size: ER16
  • Collet Nut Diameter: 1.1in
  • Has Attributes: Yes
  • Has Image: Yes
  • Head Length/Projection: 2-1/2in
  • Nose Diameter: 1.1in
  • Overall Length: 5.19in
  • Shank Type: Tapered
  • Taper Size: CAT40
ER collet chucks are an ideal solution for most drilling and lighter higher speed milling applications producing operational speeds as high as 25000 rpm. The versatile design of the ER collet chuck provides a wide range of machining options, from production to high precision machining. Simply select the right collet and nut combination from our range of performance choices to achieve the best toolholder for your application.
QTY
  • Application
  • Includes
  • Item Features
For CNC machines
16ERHN Flush Collet Nut
  • Collet seat taper T.I.R.
  • Accepts DIN 6499 collets
  • Balanced to G2.5
  • Constructed of alloy steel for long, durable service life
  • Hardened to Rc 52-56 to avoid damaging collet chuck treads
