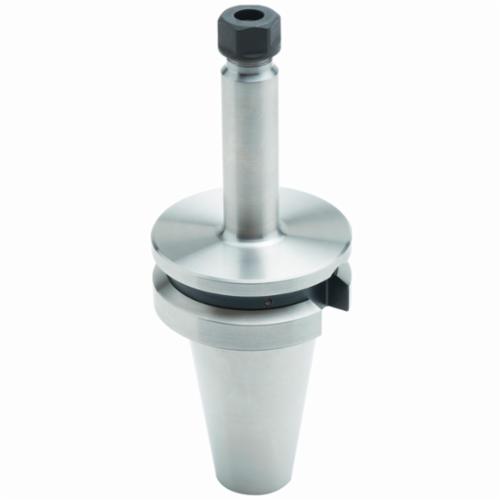

BT40 ER11 4IN GL FLUSH NUT COLLET CHUCK
BT40 ER11 4IN GL FLUSH NUT COLLET CHUCK
PARLB40-11ERF400
B40-11ERF400
229.68
/ EA
http://schema.org/OutOfStock
/Product/PARLB40-11ERF400
- Collet System: ER11
- Through Coolant (Yes/No): Yes
- Chuck Size: ER11
- Collet Nut Diameter: 3/4in
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 4in
- Nose Diameter: 3/4in
- Overall Length: 6.58in
- Shank Type: Tapered
- Taper Size: BT40
ER collet chucks are an ideal solution for most drilling and lighter higher speed milling applications producing operational speeds as high as 25000 rpm. The versatile design of the ER collet chuck provides a wide range of machining options, from production to high precision machining. Simply select the right collet and nut combination from our range of performance choices to achieve the best toolholder for your application.
- Application
- Includes
- Item Features
For CNC machines
11ERHN Flush Collet Nut
- Collet seat taper T.I.R. =0.0002 in
- Accepts DIN 6499 collets
- Balanced to G2.5
- Constructed of alloy steel for long, durable service life
- Hardened to Rc 52-56 to avoid damaging collet chuck treads
