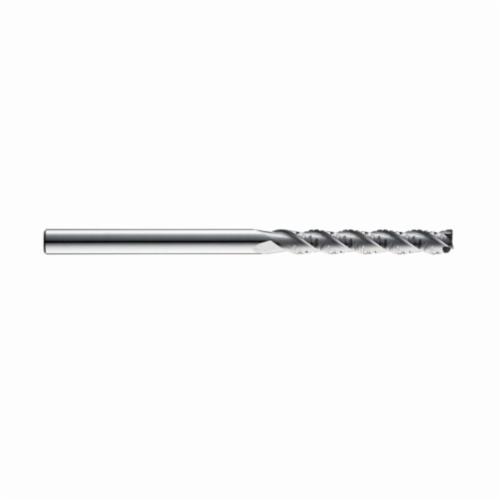

10MM SER 43CB 3FL .30R S-CARB END MILL
10MM SER 43CB 3FL .30R S-CARB END MILL
SGS44306
44306
153.02
/ EA
http://schema.org/OutOfStock
/Product/SGS44306
- Country of Origin: US
- Cutter Diameter Metric: 10mm
- Flute Type: Spiral
- Helix Angle: 38°
- Manufacturer Name: KYOCERA SGS Precision Tools
- Shank Type: Straight
- Type: Corner Radius High Performance Metric Chip Breaker
- Series: 43CB
- Length of Cut: 22mm
- Number of Flutes: 3
- Material: Micrograin Solid Carbide
- Overall Length: 72mm
- Surface Treatment: TB Coated
- Shank Diameter: 10mm
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
Aerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
- Chip breakers, polished flutes
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
- Chip breakers reduce machine loads up to 15% for increased roughing feed rate capability
- Open fluting for deep slotting and profiling
- Suitable for non-ferrous and plastics/composites
