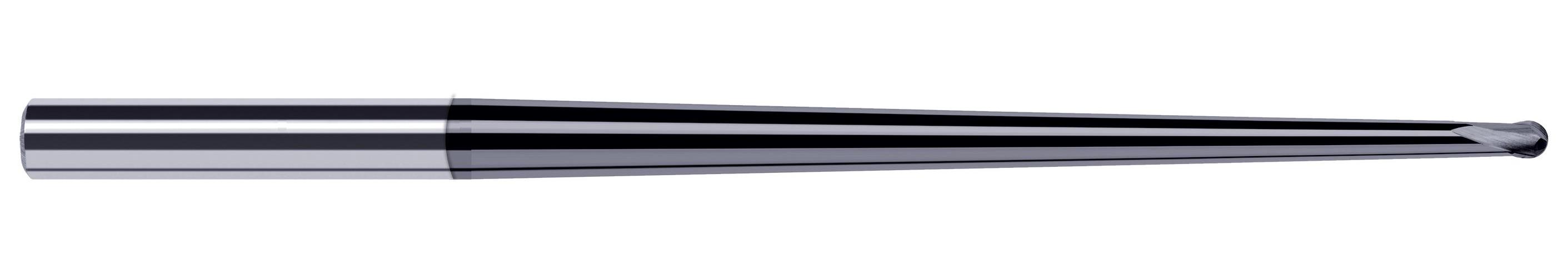

.062 1.0DEG .500 RCH 2FL MOLD CUTTER
.062 1.0DEG .500 RCH 2FL MOLD CUTTER
HATL927543-C6
927543-C6
69.00
/ EA
http://schema.org/OutOfStock
/Product/HATL927543-C6
- Cutter Diameter Inch: 0.062in
- Type: Type I High Helix Tapered Reach
- Number of Flutes: 2
- Length of Cut: 0.05 in, 0.05in
- Overall Length: 2 in, 2in
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano, C6
- Helix Angle: 35 deg
- Shank Diameter: 0.1875in, 3/16 in
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Angle: 1°
- Neck Diameter: 0.078in
- Overall Reach: 0.595in
- Tapered Reach: 0.5in
- Application
- Item Features
- Standards
Ideal for contour machining of mold and die cavities
- Very short length of cut and solid tapered neck for maximum rigidity
- 1 deg, 1.5 deg, 3 deg, 5 deg, and 7 deg neck angles to address common draft angles in molds
- 35 deg helix for increased cutting performance
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- 2 flutes to center
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Neck Angle 1
- Type I
- Tapered Reach 0.5000 in (1/2)
- Overall Reach 0.5950 in
- Profile Ball
PROP65: This product contains chemicals known to the State of California to cause cancer
