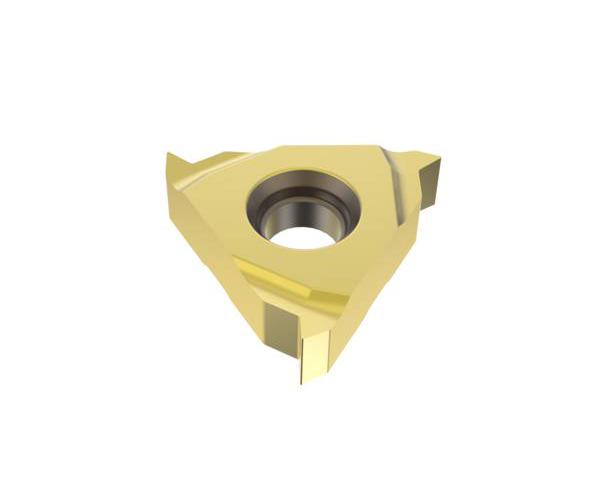

16ER A60-A CP500 EXTERNAL THREADING INSERT
16ER A60-A CP500 EXTERNAL THREADING INSERT
SEC02444854
02444854
27.62
/ EA
http://schema.org/OutOfStock
/Product/SEC02444854
- Chipbreaker: A
- Corner Radius: 0.003 in, 0.003in
- Country of Origin: SE
- Hand Direction: Right, Right Hand
- Included Angle: 60 deg, 60°
- Inscribed Circle: 0.375 in, 0.375in
- Insert Style: 16ER
- Length: 0.65 in, 0.65in
- Manufacturer Name: Seco Tools
- Material: Carbide
- Pitch: 0.059 in
- Series: 16ER
- Teeth Per Inch: 0.059in, 1.5
- Thread Standard: Partial Profile 60 deg, Partial Profile 60°
- Thread Type: External
- Threads Per Inch: 16, 16 TPI
- Type: Laydown
- Manufacturer Grade: CP500
- Thickness: 0.137 in, 0.137in
- ANSI Designation: 16ERA60-A
- Cutting Edge Length: 0.65in
- Fixing Hole Diameter: 0.157in
- Hand of Insert: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- ISO Designation: 16ERA60-A
- Old Manufacturer Number: 17240
- Seat Size: 16
- Thread Form Type: Partial Profile 60 - External Threading
- Tool Type: Insert
- Application
- Item Features
- Standards
For a large majority of common thread turning applications
- Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
- Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
- Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
- Especially suitable in intermittent cuts
