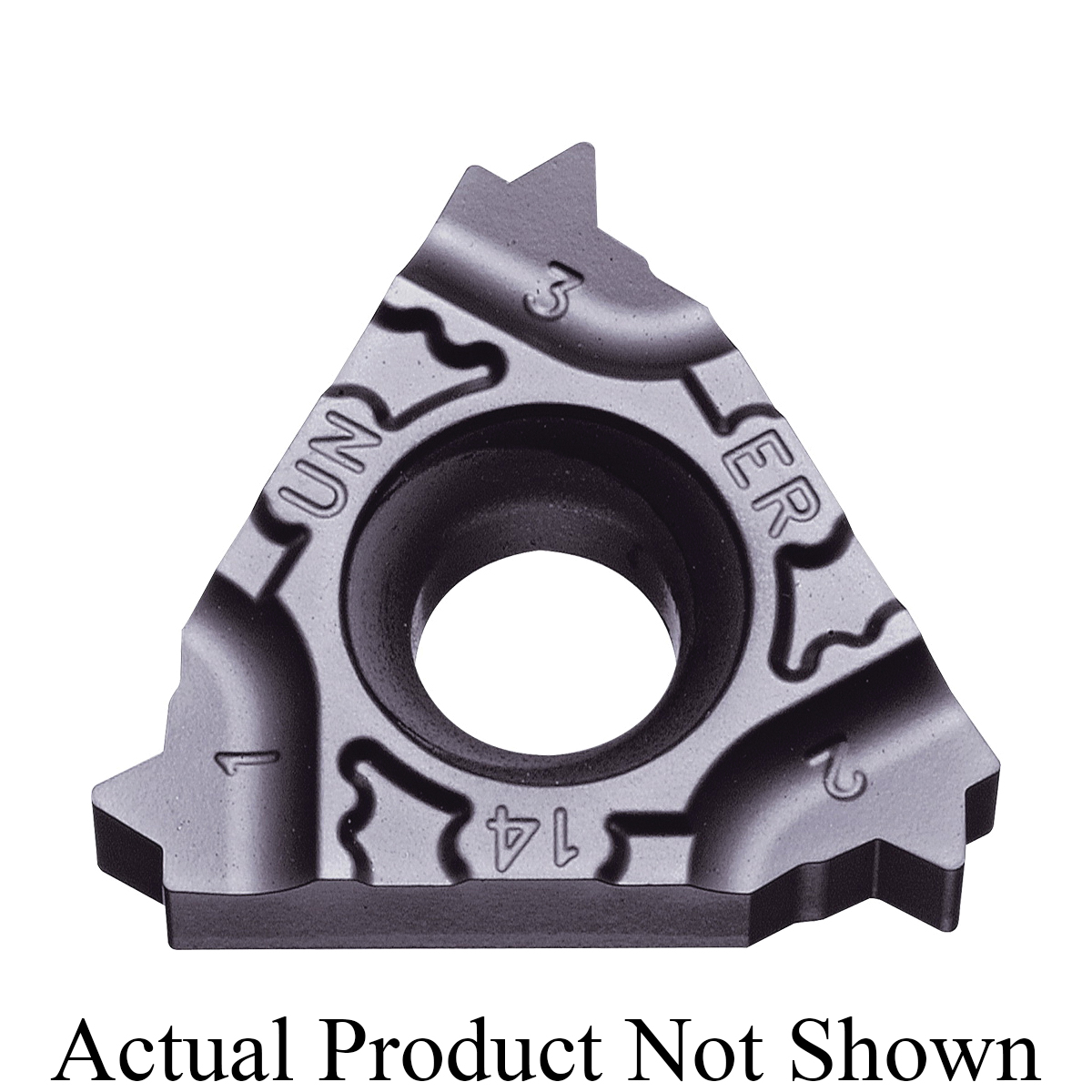

16ER08UNTFPR1115 THREADING INSERT
16ER08UNTFPR1115 THREADING INSERT
KYOCTJY18896
TJY18896
15.15
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJY18896
- ANSI Code: 16ER08UNTFPR1115
- Chipbreaker: TF
- Country of Origin: US|JP|CN|KR
- Included Angle: 60°
- Inscribed Circle: 3/8in
- ISO Code: 16ER08UN-TF
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide
- Material Grade: P, M
- Thread Standard: Unified, UNF
- Thread Type: External
- Threads Per Inch: 8
- Type: 3-Cutting Edge
- Manufacturer Grade: PR1115
- Insert Style: 16ER
- Insert Size: #16
- Corner Radius: 0.0169in
- Thickness: 0.145in
- Surface Treatment: PVD-TiAlN Coated
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel and external threading
- 60 deg full profile for unified threads
- Hard TiAlN base PVD coated super micro-grain carbide
ECCN: EAR99
