SLEEVE, 0.75 IN DIAX1 IN W
BRA130233
MFG #: 130233
$432.39
/ RL
- Material: B-342 Polyolefin
- Temperature Rating: -94 to 267 deg F
- Type: 2-Sided Heat Shrink
- Wire Size: 6 to 4/0 AWG
- Series: IP® Series
- Width: 1 in
- Length: 1-1/4 in
- Color: Blue
Brady® PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification.
- Application
- Item Features
- Standards
Panel ID, Cable and Wire Marking Applications
- Heat shrinkable, with 3:1 shrink ratio, self-extinguishing, made of B-342 polyolefin material
- Chemical, corrosion, fade, humidity, smear, smudge, UV, weather-resistant, full circle insulating sleeves
- Thermal transfer print technology
- 6 to 4/0 AWG wire
- LabelMark™ labeling software, CodeSoft™ 9 labeling software compatible
- Recommended for R4300, R6600, R6700 (with black sleeves) ribbon Series
- Matte finish
- Brady® PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification

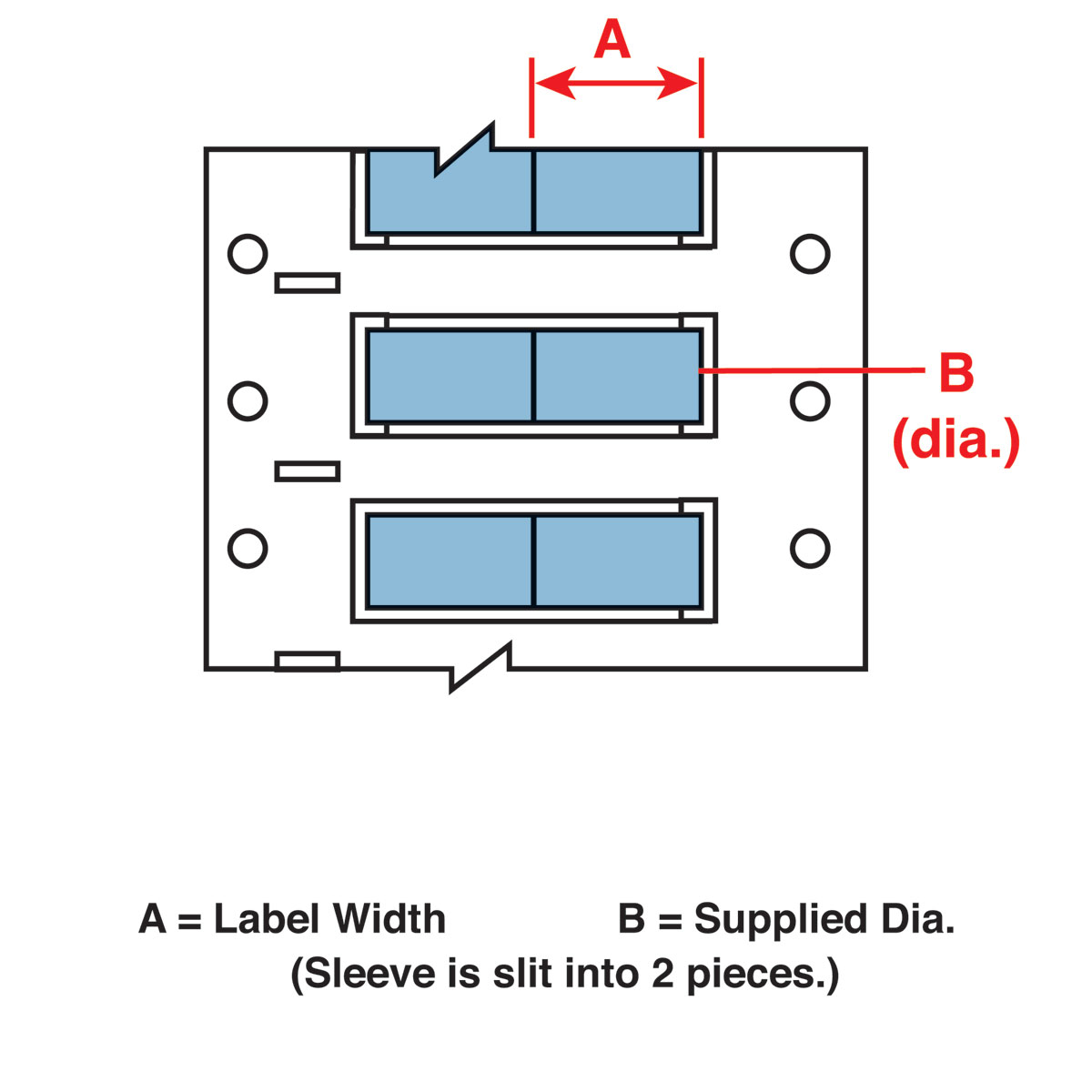

- 3/4 in Dia sleeve as supplied
- 1-1/4 in H
ASTM D2671/E162/E662/G155|MIL-STD-202|SAE-AMS-DTL-23053|SAE-AS-81531|UL Listed|PROP65: Cancer - www.P65warnings.ca.gov
