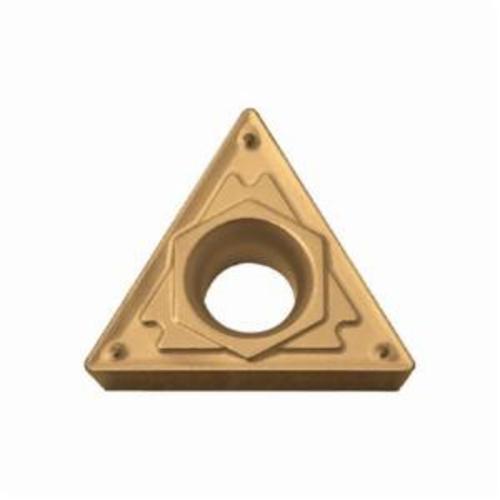

TCMT-21505 PVD CTD CARBIDE INSERT

AMETCMT21505TMFP02 MFG #: TCMT21505TMFP02
$11.50 / EA
TRI.2501C X.094T X.008R TMFP02
  • ANSI Code: TCMT21505
  • Chipbreaker: MF
  • Country of Origin: JP
  • Included Angle: 60 deg
  • Inscribed Circle: 1/4 in
  • ISO Code: TCMT110202
  • Manufacturer Name: Allied Machine & Engineering
  • Material: Cermet
  • Shape: T-Triangle
  • Thickness: 0.094 in
  • Insert Style: TCMT
  • Corner Radius: 0.008 in
Allied Criterion® Boring Systems are a complete solution for your precision hole making requirements. You can create a specialized assembly to meet your application requirements using the large selection of standard components. The large mounting surfaces provide maximum rigidity and stability for use in CNC machining centers.
QTY
Add to List
  • Application
  • Item Features
For medium general purpose applications
  • 7 deg back clearance
  • TXS-116-10 compatible Torx screw
  • Compatible with 8T-7 Torx wrench
  • For free cutting, carbon/alloy and grey cast iron metals
