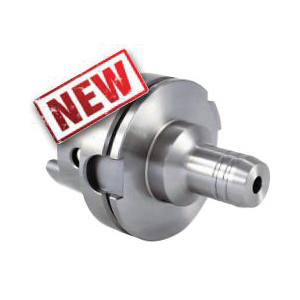

HSK100A x H20S-90MM HYDRAULIC HOLDER
HSK100A x H20S-90MM HYDRAULIC HOLDER
TEC159200
159200
415.00
/ EA
http://schema.org/OutOfStock
/Product/TEC159200
- Clamping Depth: 42mm
- Country of Origin: TW
- Manufacturer Name: TECHNIKS INDUSTRIES
- Nose Diameter: 53mm
- Shank Type: Tapered
- System Size Machine Side: HSK100A
- Taper Size: HSK100A
- Through Coolant (Yes/No): Yes
- Type: High Precision Metric
- Connection Size: HSK100A
- Hole Diameter: 20mm
- Gage Length: 90mm
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
For face milling and edge milling, drilling, reaming, chamfering
- Balanced to 25000 rpm at G2.5
- TIR 0.0001 in measured at 3X shank diameter
- Taper precision ground to AT3 standard
- AD coolant through is standard
- Hydraulic chucks provide powerful, vibration free cutting in all materials
- Hydros are a good choice when you need TIR of 0.0001 in and high holding power
- Use cutting tools with a H6 shank tolerance
