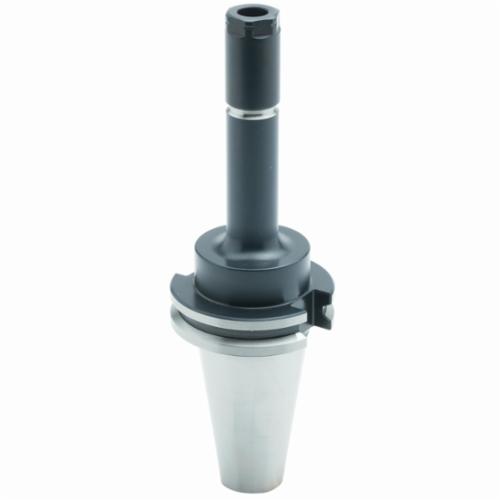

DA300 CHK X 5.15"
DA300 CHK X 5.15"
PARLC40-30DC5
C40-30DC5
243.60
/ EA
http://schema.org/OutOfStock
/Product/PARLC40-30DC5
- Collet System: DA300
- Through Coolant (Yes/No): Yes
- Type: Double Angle
- ANSI Code: C40-30DC5
- Chuck Size: DA300
- Collet Nut Diameter: 0.62in
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 5.15in
- Nose Diameter: 0.62in
- Overall Length: 7.837in
- Shank Type: Tapered
- Taper Size: CAT40
- Includes
- Item Features
CN30 Collet Nut and 029-909 Backup Screw
- Constructed of alloy steel for long, durable service life
- Hardened to Rc 52-56 to avoid damaging collet chuck threads
- Shiny taper with black oxide finish for the best combination of accuracy and durability
- Collet seat taper T.I.R.
- Through-spindle coolant capability
- Flange-entry coolant is the same as DIN form B
